1040080/A

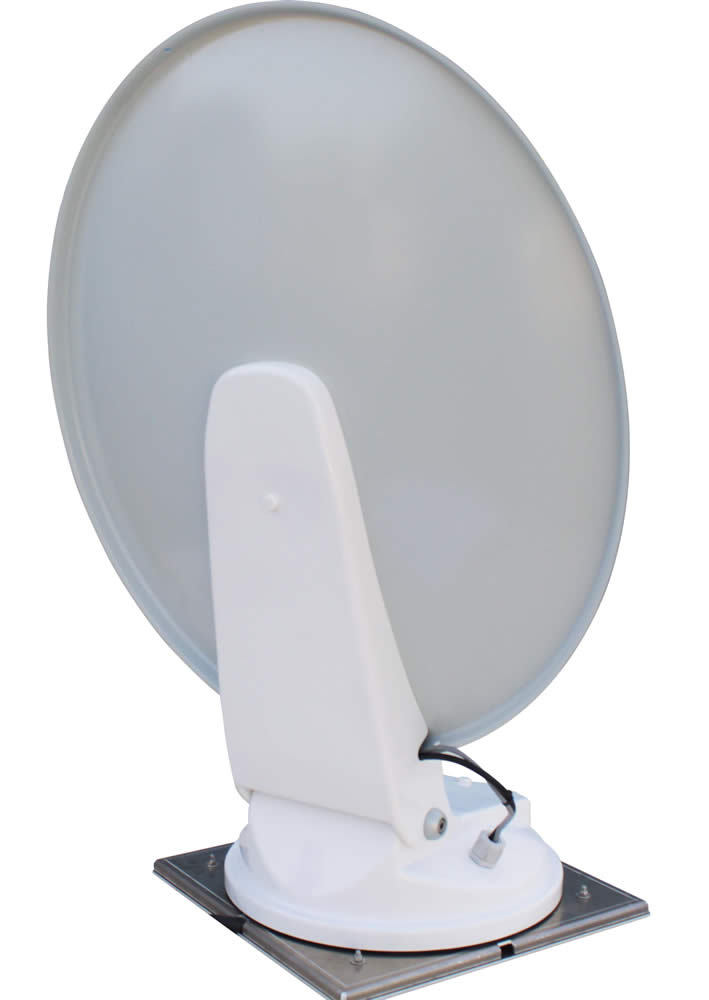

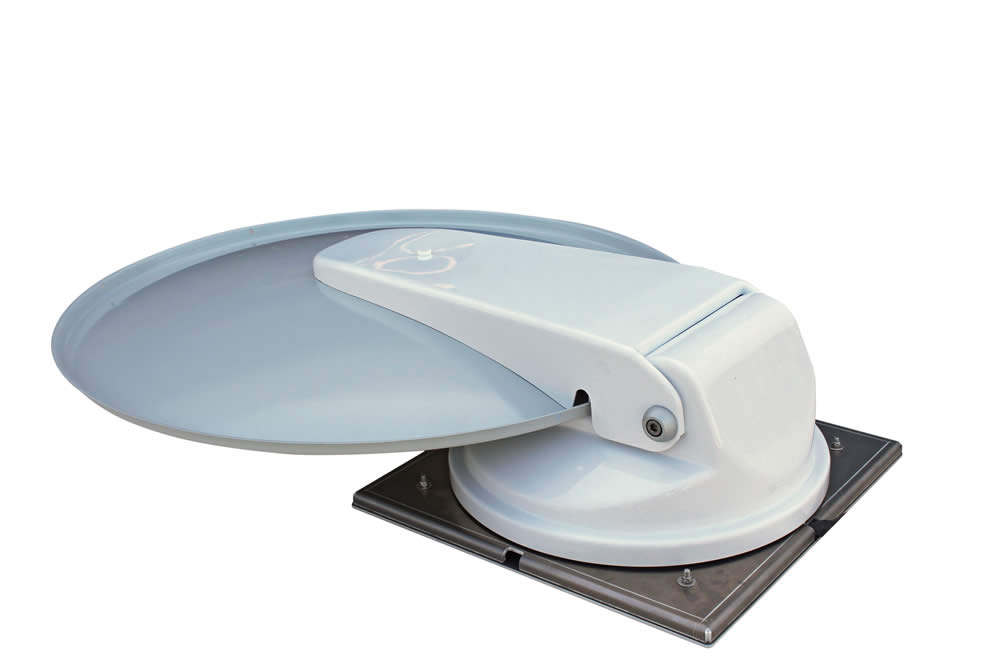

AUTOMATIC HD SATELLITE DISH SAT&GO TOP VISION 80

Automatic HD satellite dish with wall control panel with 8 stored satellites.
Can be matched with any decoder (SKY, Tv Sat, etc.)
• Reliable and performing product, very easy to use, available in the 65 and 80 cm. diameters and with single or twin LNB.
• The mechanical components are all in aluminium and are installed on bearings, fitted with steel gears and the total weight starts from 9 kgs

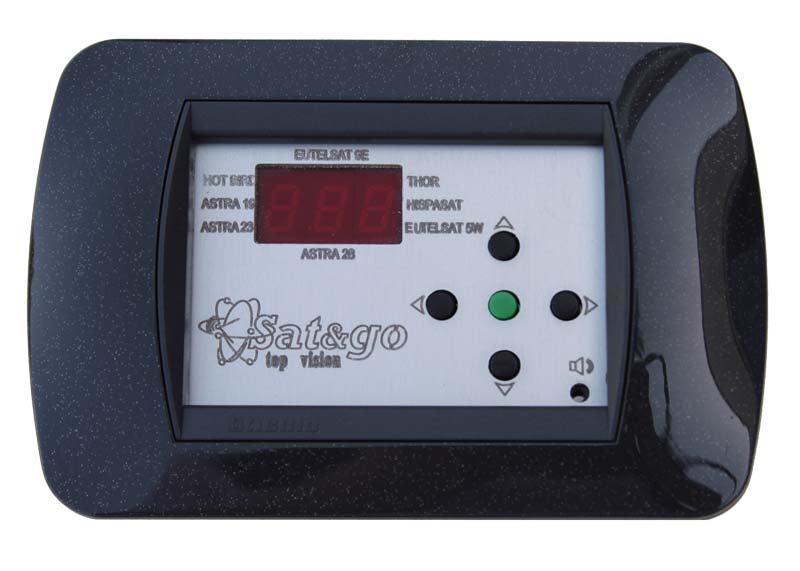

• Fitted with GPS and digital inclinometer, which enable the pointing of the selected satellite in only 15 /20 seconds. The updates can be made thanks to the smart control panel with mini USB jack, which also enables the manual pointing and
the adjustment of the automatic pointing performed by the device.
DVB-S2 HD integrated tuner. The following default satellites are stored: Hot Bird, Astra 19, Astra 23, Astra 28, Eutelsat SW, Hispasat, Thor and Eutelsat 9E.
• Connections and assembly are very simple as the electronic components are all incorporated within the dish. Moreover, the device is fitted with an accelerometer that ensures the automatic closure, even in the absence of the D+ signal.
• Pleasant and streamlined external design that seamlessly integrates with all types of vehicles.


Technical specification

Supply voltage: 12V ( 12-15 Vdc)
Max consumption: 2.0 AMP
Height: 19 cm
Weight: 10.40 kg
Size dish: 100 x 80 x 19 cm
Size control panel: 8x12 cm
Cable bundle length: 5 mt



foto aggiuntive ANTENNA SATELLITARE HD AUTOMATICA SAT&GO TOP VISION 80 ANTENNA SATELLITARE HD AUTOMATICA SAT&GO TOP VISION 80 ANTENNA SATELLITARE HD AUTOMATICA SAT&GO TOP VISION 80 ANTENNA SATELLITARE HD AUTOMATICA SAT&GO TOP VISION 80
